JIS-K7110、K7111、ASTM-D256、D6110、ISO-179、180

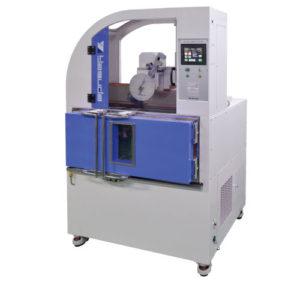

This tester is used for measuring the impact strength by pendulum under the low temperature condition. It can perform Charpy and Izod impact test.

Temperature range

-35～80℃ (Refrigerator attached)

Safety device

Hammer positioning sensor, Acrylic Safety cover

Specifications

Refer to No.258 Universal Impact Tester

Option

Data processing device

Power source

AC220V 3-phases 30A 50/60Hz

Dimensions/Weight

W1,220xD990xH1,660mm・350kg
