JIS-K7191-1、K7206、ASTM-D648、D1525、IEC-335-1、ISO-75-1、306

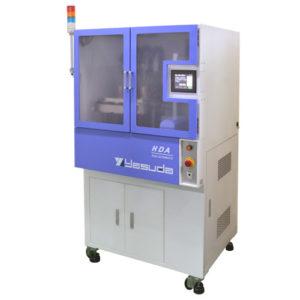

This tester can perform the continuous DTUL or VSP test automatically for 120 specimens by the robotized mechanism.

Stations

3 or 6stations (2kinds)

Temperature range

Max.300℃ （Oil bath)

Heating-up speed

120±10℃/hr, 50±5℃/hr

Bending stress

1.80MPa, 0.45MPa

Displacement measuring

Differential transduce

Maximum specimens

40specimens x 3cassets （Total 120specimens）

*Incase of T10mm

Software

Suitable for WindowsXP

Accessories

Specimen holder

Option

Silicon oil, Safety cover, Refrigerator

Power source

AC220V 1-phase 30～40A 50/60Hz

Air source

More than 0.5MPa

Dimensions/Weight

W930～1,150xD600xH1,300mm・350～400kg
