JIS-K7191-1、K7206、ASTM-D648、D1525、IEC-335-1、ISO-75-1、306

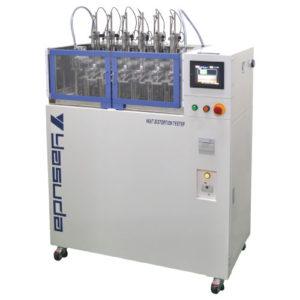

This is the most necessary tester for the heat resistance test of thermo plastics. This machine can perform DTUL, VSP and Ball pressure tests.

Stations

3, 4 or 6stations (3kinds)

Temperature range

Max.300℃ （Oil bath)

Heating-up speed

120±10℃/hr, 50±5℃/hr

Bending stress

1.80MPa, 0.45MPa

Displacement measuring

Differential transducer

Software

Suitable for WindowsXP

Accessories

Specimen holder

Option

Silicon oil, Safety cover, Refrigerator

Power source

AC220V 1-phase 30～40A 50/60Hz

Dimensions/Weight

W700～1,000xD500xH1,300mm・170～220kg
