JIS-K7191-1、K7206、ASTM-D648、D1525、ISO-75-1、306

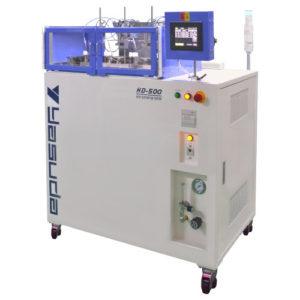

This tester enables Max 500℃ test especially desirable for super engineering plastics. Quartz glass specimen rack realized the minimum distortion of the rack itself.

Stations

3stations

Temperature range

Max.500℃ （Air chamber）

Heating-up speed

120±10℃/hr, 50±5℃/hr

Bending stress

1.80MPa, 0.45MPa

Displacement measuring

Differential transducer

Software

Suitable for WindowsXP

Accessories

Specimen holder

Option

Safety cover

Power source

AC220V 1-phase 30A 50/60Hz

Dimensions/Weight

W1,100xD650xH1,500mm・250kg
