FMVSS-302、JIS-D1201、（JASO）、ISO-3795、

ASTM-D5132

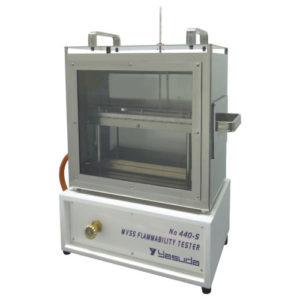

This equipment is used to measure the combustion speed level of textile product and is particularly suitable for the test with thin cloth.

The sample is mounted at the holder inclined at 45° and the start push button is the sample for 1 second. When the combusion proceeds and the sample is burned at the upper section of the sample is burned off , the weight falls down and the timer stops automatically.

(JIS-L1079 C method. Combustion speed test)

Specimen

W102mm, L356mm, Less than T13mm

Specime holder

U-shape with groove（Pitch 25mm）

Bunsen burner

Flame length 38mm, Bore φ9.5±0.5mm

Accessories

Gas lighter, Flame length gauge, Thermometer

Option

Timer (Flaming time control)

Power source

AC220V 1-phase 1A 50/60Hz（With timer）

Heat source

Natual gas (Calorific value : 38MJ/m3）

Dimensions/Weight

W480xD210xH460mm・20kg

W480xD250xH610mm・25kg（With　timer）
