JIS-K6264-2、ISO-4649

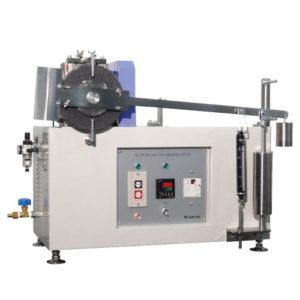

This tester is used for measuring the rub resistance for vulcanized rubber.

Specimen

（20±0.5）x（20±0.5）xT10mm

Test Load

35.5N(3.62kgf）

Wheel rotation speed

37±3rpm

Timeｒ

Max.99min59s

Accessory

Specimen cutting die

Power source

AC220V 1-phase 10A 50/60Hz

Air source

More than 0.5MPa

Dimensions/Weight

W700xD520xH560mm・55kg
