UL-94、JIS-K6911、ASTM-D635、D3801、D4804、D5025、D5207、ISO-1210

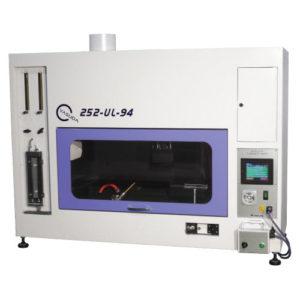

This tester is used for measuring the flame resistance under V of HB test and equipped modified specimen sliding system by front handle under V test.

Chamber

1,000x640x800mm（Approx.0.5m3）

Specimen

L125±5mm, W13.0±0.5mm, Less than T13mm

Burner

L100±10mm, Bore φ9.5±0.3mm

Burner base

Slide type(by front handle), Angle 45±2°

Burner calibration device

Flow meter, Manometer （Option : Timer, Thermometer)

Accessories

Gas lighter, Flame gauge, Wire mesh, Cottn pad

Power source

AC220V 1-phase 5A 50/60Hz

Heat source

Methane gas (Purity : 98％ over）

Dimensions/Weight

〔Main body〕W1,250xD700xH850mm・100kg

〔Calibration device〕W150xD260xH350mm・2kg
