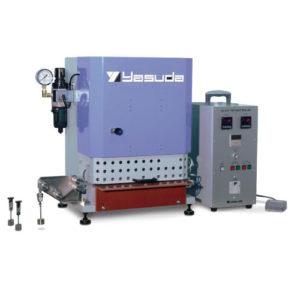

No.212 YSS HEAT SEALER
This instrument is obtain the optimum characteristics of the temperature and pressure necessary for heat sealing of plastic film.
|
Seal plate |
Width Min.5mm～Max.20mm, Length 300mm |
|
Temperature range |
Max.300℃ |
|
Pressing device |
Pneumatic cylinder |
|
Accessory |
Foot switch |
|
Option |
Safety cover, Air compressor |
|
Power source |
AC100V 1-phase 15A 50/60Hz |
|
Air source |
More than 0.5MPa |
|
Dimensions/Weight |
〔Main body〕W460xD350xH550mm・70kg 〔Control box〕W200xD330xH400mm・35kg |
