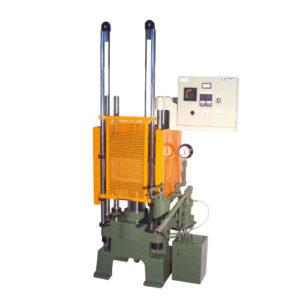

No.196 ELECTRIC HEATING SYSTEM TEST PRESS
This apparatus is used for molding plastics and rubber at a laboratory.
|
Platen size |
355x305mm |
|
Platen opening |
Max.550mm |
|
Maximum pressure |
Max.20.6MPa（210kgf/cm2） |
|
Maximum force |
Max.37ton |
|
Temperature range |
Max.250℃（Option : Max.400℃） |
|
Option |
Hydraulic pump system, 2 stages, Water cooling platen, Safety cover |
|
Power source |
AC220V 3-phases 40～50A 50/60Hz |
|
Dimensions/Weight |
W630xD470xH1,550mm・600kg |
