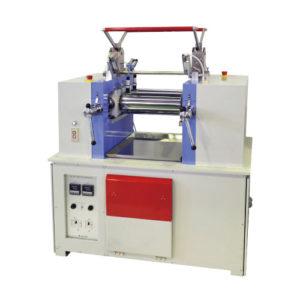

No.191-TM/WM TEST MIXING ROLL
These are the pair roll machines compact and for laboratory use. The machine is equipped with especially finished rolls the surface temperature of which is kept accurately. It is also equipped with powerful chain gear driving system and knee type quick stop device.
|
Model |
No.191-TM |
No.191-WM |
|
Roll size |
φ3"x 8",φ4"x 8",φ5"x12",φ6"x15",φ8"x20"（5kinds） |
|
|
Heating method |
Electric heating （Cartridge heater） |
Steam heating （Rotary joint) |
|
Temperature range |
Max.200℃（Option : Max.300℃） |
Max.200℃（Pressure More than 1.5MPa） |
|
Gear ratio |
Approx.1 ： 1.25 |
Approx.1 ： 1.25～1.4（Depends on roll size） |
|
Safety device |
Knee puch stop plate, Emergency stop sw, Overload protecting metal breaker (More than φ5"）（Option : Y-shape type emergency stop bar, Area optical sensor） |
|
|
Accessories |
Shifting plate, Mill pan, Oil |
|
|
Option |
Valiable speed control, Digital temperature controller, Automatic lubricating device |
|
|
Power source |
AC220V 3-phases 20～30A 50/60Hz |
|
|
Dimensions/Weight |
Depends on specifications |
