JIS-K7144、ISO-2818

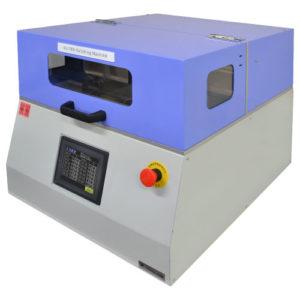

This machine is to produce notched sample for Izod and Charpy Impact Test.

The test sample clamp moved by motor is of the standard function and other function and options are prepared to select.

Model

No.189-PNCA

No.189-PNA-2

No.189-PNA-1

Specimen clamp

Feed speed 50～600mm/min

Cutter axis

2axes (Notch & Side cut）

1axis (Notch)

Cutter rotation speed

Notch : Approx.150～1,780rpm

Side : Approx.50～600rpm

Notch : Approx.150～1,780rpm

Notch depth

Automatic : Range 0～9mm（Unit 0.01mm）

Manual :Range 0～4mm

　　　　　（Unit 0.01mm）

V-notch cutter

Single tooth tip

Side cutter

Width 80mm（Standard)

-

Accessory

Suction device

Option

Air clamp,U-notch cutter

Power source

AC220V 1-phase 15A 50/60Hz

Dimensions/Weight

W580xD650xH550mm・90kg

W500xD650xH550mm・70kg

W700xD560xH360mm・60kg
