JIS-K7144、ISO-2818

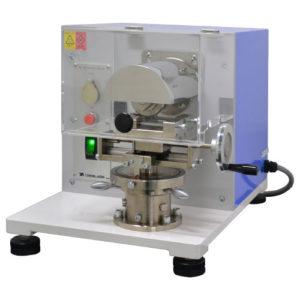

For preparing specimen of rigid plastic sheet, synthetic resin bonded laminate etc.

Standard specimens are required for tensile strength test, compression test, bending test and impact in JIS, ASTM etc.

Specimen clamp

Feed speed 1.75mm/1turn

Cutter rotation speed

Approx.600rpm（60Hz）, 500rpm（50Hz）

Notch depth

Manual : Depth 0～4mm（Unit 0.01mm）

V-notch cutter

Single tooth tip

Option

Air clamp, U-notch cutter

Power source

AC220V 1-phase 10A 50/60Hz

Dimensions/Weight

W420xD530xH380mm・50kg
